PVDF Coated Aluminum Honeycomb Panel

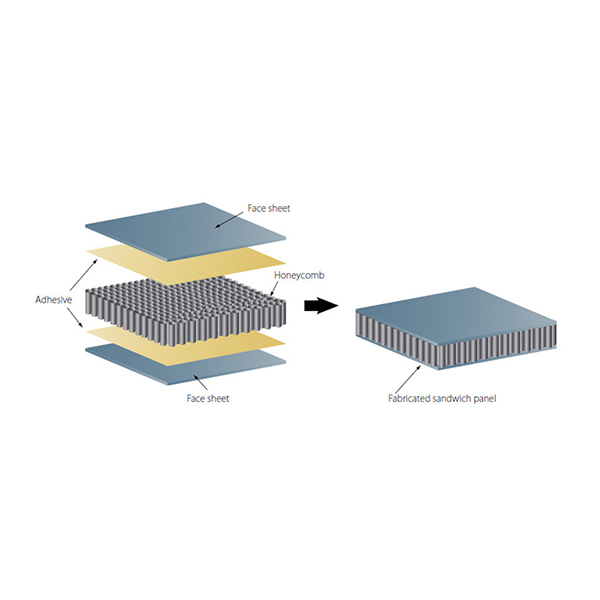

TOPBOND PVDF coated aluminum honeycomb panels are composed of PVDF (Polyvinylidene fluoride) roller coated or powder coated aluminum face sheets bonded to expanded aluminum honeycomb cores. Thanks to the PVDF coating, the coated aluminum honeycomb plates can be widely used in outdoor environment due to it’s good weather resistant performance.
Benefits you can get from TOPBOND PVDF Coated Aluminum Honeycomb Plates
- Weight reduction, at the same time remain good strength and rigidity
- Good weather resistance, heat and sound insulation
- Corrossion resistance, anti-aging in outdoor environment
- Fire retardant, Class A tested fire resistance
- Resistant to ultraviolet radiation
- Diverse in colors and shapes
- Longtime lifespan of 25 years
- Easy installation and maintenance
- 100% recyclable
Colors
30 Standard colors/ Timber Series/ Stone Series/ Metal Series/ Anodize Colors/ Stylish Coat/ Stylish Anodize/ Sparking
Any Color in RAL chart is available.
Surface Finish
Honeycomb Panels used for Interior and Exterior Walls are pre-coated.
- PE(Polyester) for interior use
- PVDF(Fluorocarbon) for exterior use
- Anodized
- Nano
Specifications of TOPBOND PVDF Coated Aluminum Honeycomb Panels
TOPBOND’s PVDF coated aluminum honeycomb plate is a bespoke structural sandwich panel, the overall panel thickness and panel size, surface finish and panel shapes all can be determined by our customers. We offer aluminum honeycomb panel with a broad surface finish and color to ensure your design can be reality.
| Overall Panel Thickness | From 3mm to 200mm, common thickness 8mm, 10mm,12mm, 15mm, 20mm, 25mm, 30mm, 50mm |
| TOP and Bottom Skins | 0.5mm, 0.7mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm |
| Core Material | Aluminum honeycomb,4-0.04mm, 5-0.05mm, 6-0.06mm |
| Surface Finish | Mill finish, Primer coating, PVDF coating, PE coating, Powder coating, Anodized, Tread texture, etc. |
| Panel size | Standard 4ft x 8ft, customize size within 2 meters by 6 meters |
| Alloy Used | AL1100/AL3003 |
| Working Temperature | -40℃ to 80 ℃, high temperature resistance to 200℃ plate can be customized |
| Colors | Any RAL colors |
| Shapes | Flat panel, curved panel, bended panel, round shapes, customize |
Why Use PVDF Aluminum Honeycomb Plates for Wall Cladding?
Compared to traditional wall cladding materials such as aluminum single plates and aluminum composite panels ACP, the aluminum honeycomb panel offers better weight to strength ratio and better flatness when in large size. It is much easier to handle and install, which ensures a faster construction process and lower labor costs. Additionally, the honeycomb panel has impressive insulating properties, providing a more energy-efficient solution for buildings.
The honeycomb structure of the panels offers unique benefits for large-scale projects, especially for their increased durability and strength. The aluminum honeycomb panels have outstanding compression strength and shear strength, making them extremely resistant to deformation and damage caused by high winds or seismic activity. This feature also ensures that the panels have a longer life span, reducing the need for frequent replacements and maintenance.
