mill finish aluminium honeycomb plate
Mill finish aluminium honeycomb sandwich panel
mill finish aluminium honeycomb plate
Mill finish aluminium honeycomb sandwich panel

Mill Finish Aluminum Honeycomb Panel

Mill finish aluminum honeycomb panels with both sides aluminum facing sheet untreated and uncoated, they are mainly used to reinforce stone slabs and for further bonding with other decorative surface materials. It’s mill finish surface can reduce the cost and convenient for further processing.





Products Categories
Get A Free Quote
Contact Form Demo (#3)

Materials Used for TOPBOND Mill Finish Aluminum Honeycomb Plates

The honeycomb core consists of aluminium foils made of the alloy 3003. Cell size is approx. 6.35 – 12.7 mm. The cover sheets of the honeycomb panels consist of non-prepainted aluminum alloy 1100/3003. Non-prepainted aluminum surface is specifically designed for further composition purpose. It can be composited with different material surfaces like wood, stone, HPL laminate, Mgo board, foam, steel, ceramic tiles and etc. With mill finish/non-prepainted surface can reduce the production cost for your whole project.
To achieve better bonding strength, we can grind the aluminum surface to make it rough or apply primer coating on the aluminum surface. Done with these process, the surface of the aluminium honeycomb plate will have better bonding strength with your decorative materials like stones.



TOPBOND Mill Finish Aluminium Honeycomb Panels Can Offer

  • High strength, lightweight
  • Heat and sound insulation
  • Corrossion resistance
  • Fire retardant
  • Low cost, easy to handle
  • Available in large size max. 2000x6000mm
  • Good bonding strength
  • Strong reinforcement
  • 100% recyclable

Specifications of TOPBOND Mill Finish Aluminum Honeycomb Panels

TOPBOND mill finish aluminum honeycomb plate is a customizable composition plate, the overall panel thickness and panel size can be determined by our customers. Although it’s customized product, we usually keep stock of raw materials to guarantee a fast delivery.

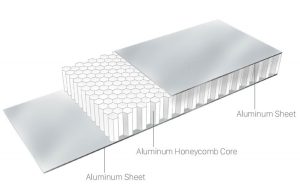

structure of aluminum honeycomb sheets

Overall Panel Thickness From 3mm to 200mm, common thickness 8mm, 10mm,12mm, 15mm, 20mm, 25mm, 30mm, 50mm
TOP and Bottom Skins 0.5mm, 0.7mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm
Core Material aluminum honeycomb,4-0.04mm, 5-0.05mm, 6-0.06mm
Surface Finish Mill finish, primer coating
Panel size Standard 4ftx8ft, customize size within 2 meters by 6 meters
Alloy Used AL1100/AL3003
Working Temperature  -40℃ to 80 ℃, high temperature resistance
to 200℃ plate can be customized

Applications of Mill Finish Aluminum Honeycomb Plates

TOPBOND mill finish aluminum honeycomb plates are a high strength, lightweight material that offers high mechanical properties and good fire performances. Aluminum honeycomb plats are an excellent alternative to monolithic materials such as solid aluminum, wood and steel. The mill finish aluminum honeycomb plats are usually used for backing materials of marble stones and ceramic tiles. It’s mill finish skins makes it a perfect substrate to composite with a diverse decorative surface materials.

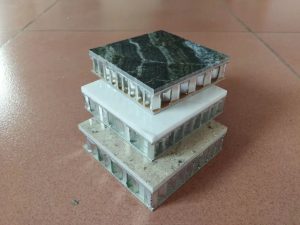

mill finish aluminium honeycomb panel for stone backing

Why Choose Aluminium Honeycomb Panels as substrate for Composite Materials?

Aluminium honeycomb panels make an excellent substrate for composite materials due to their unique structure and material properties. The honeycomb core provides high stiffness with minimal weight, enhancing the overall strength-to-weight ratio of the composite. When bonded with materials like stone, aluminium honeycomb panels offer superior impact resistance, improved durability, and greater ease of installation compared to solid stone. This combination also ensures dimensional stability and resistance to moisture and temperature changes, making it suitable for both interior and exterior decorative applications in architecture and construction.



Get Free Quote of Mill Finish Aluminum Honeycomb Panel

Related Products

Related News

Primer coating is a preparatory layer applied to surfaces before the main coating or finish. It serves to improve adhesion, […]

Proper bonding between honeycomb panels and stone is critical to ensuring the durability and appearance of the composite panel. The […]

Development of China’s Aluminum Honeycomb Industry in the First Half of 2024 In the first half of 2024, China’s aluminum […]
